CA-600 AMBULATORY INFUSION PUMP
- Ideal solution for accurate, continuous infusion treatment
- Great for both home care and hospital use
- Post-surgery pain management
- Parenteral Nutrition
- Antibiotherapy
- IVIG
- Other continuous infusion therapies
- Infusion Rate: 0.1 ml/h - 100 ml/h
- Increments: 0.1 ml/h - 10 ml/h in 0.1 increment | 10 ml/h - 100 ml/h in 1 increment
- Volume Limit: 0.1 ml - 999 ml

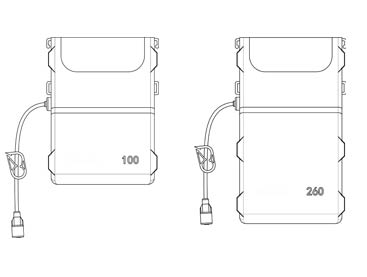

- Reservoir Container: 100ml Reservoir 260ml Reservoir Extension Box (used with external infusion bag)
- Bolus Volume: Programmable from 0.1 ml to the capacity of the reservoir or external infusion bag
- P.C.A. Function (Patient-Controlled Analgesia): The PCA volume is programmable between 0.1 ml to 10 ml in 0.1 ml increments; the locking interval is programmable between 5 minutes to 60 minutes with 5-minute increments
- Accuracy: ±10 %
- Alarms: Reservoir Not Installed, Reservoir Disengaged
Air In Line, Infusion Completed, OcclusionLow Battery Alert/ Battery Depleted
Mechanical Error, User Prompt
- Power Supply:
AC Adaptor (optional): 3V DC, 2A
AA Batteries × 2: Max 50-hour operation @ 2ml/h
- Dimensions: 144 (L) x 98 (W) x 38 (D) mm
- Weight: 150g / 0.33 lbs (battery weight not included)
- Pump Pack Content:
Ambulatory infusion pump × 1
User’s manual × 1
PCA cable × 1
Carry pack × 1
- Reservoir Pack Content:
100ml or 260ml reservoir/extension box × 1
Extension tubing × 1
